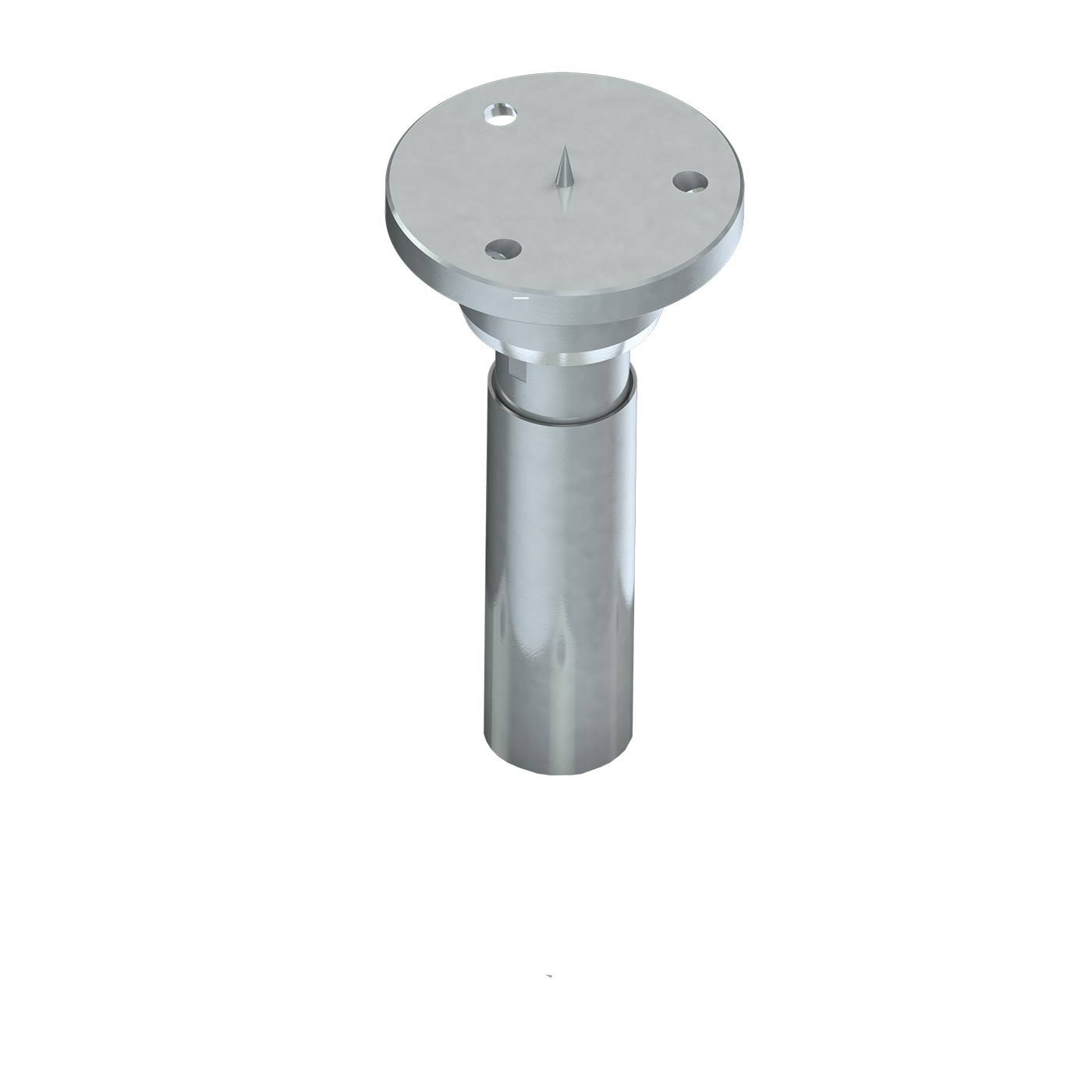

SHERPA Power Base L 130 C Top

ohne Grundplatte, zum Einbetonieren

item number 1608

The SHERPA Power Base XL 120 C Top is to mount on a threaded rod set in concrete. Power Base C is adjustable under full load.

Threaded rod M30 x 1 m.

Height adjustment area: 150 - 200 mm
R_1,d (pressure) - steel: ca. 120 kN (with a max. column base height of 200 mm)

Dimensions and coating:

• End plate: Ø 96 mm
• Coating: Zinc-Nickel

Fastening:

• End plate: 3 Pcs. 8 x 160 mm, Item# 10000023939 (included) for a min. wood dimension of 120 x 120 / Ø 120 mm


• End plate: 3 Pcs. 8 x 180 mm, Art.Nr. 10000026101 (Alternative) for a min. wood dimension of 140 x 140 / Ø 140 mm

Open-end wrench (not included in the delivery package):
32 mm (height adjustment)
55 mm (coupling nut)

5 pcs./sales unit incl. 15 pcs. screws 8 x 160 mm ZnNi
